Airports for X-Plane

Patras - Araxos

Airport details

CountryGreece
StatePeloponnese, Western Greece and the Ioni
RegionLG
AirspaceAthens Ctr
MunicipalityMunicipal Unit of Larissos
Elevation43ft (13m)
TimezoneGMT +2
Coordinates38.15111, 21.42556
Magnetic var
Typeland
Available sinceX-Plane v10.40
ICAO codeLGRX
IATA codeGPA
FAA coden/a

Communication

Araxos Tower125.250
Araxos Tower122.100
Araxos ANDRAVIDA Approach122.100
Araxos ANDRAVIDA Approach120.650
Nearby Points of Interest:
Strofylia forest
-
ancient theater of Calydon
-
Missolonghi–Aitoliko Lagoons
-
Apollon Theatre
-
Stratos

Runway info

Runway 18L / 36R
 length3359m (11020ft)
 bearing184° / 4°
 width21m (70ft)
 surfaceconcrete
 displ threshold24m (79ft) / 24m (79ft)
 blast zone41m (135ft) / 46m (151ft)
Runway 18R / 36L
 length3359m (11020ft)
 bearing184° / 4°
 width45m (148ft)
 surfaceasphalt
 displ threshold199m (653ft) / 204m (669ft)
 blast zone70m (230ft) / 50m (164ft)

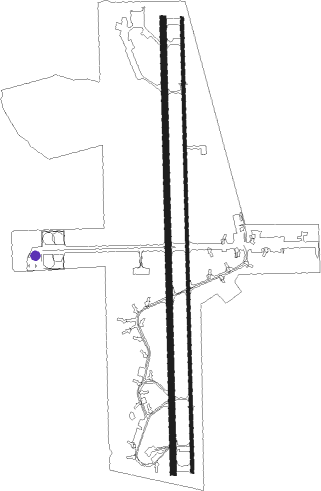

Airport layout - taxiway location ARAXOS|NAT


Taxiway locations

 APRON|D  ARAXOS|NAT
Parking locations

 Aircraft  Civil  GA  New  Ramp

Nearby beacons

codeidentifierdistbearingfrequency
ARXARAXOS TACAN0.244°112.40
ARAARAXOS VOR/DME0.526°112.70
AMLANDRAVIDA TACAN14.8213°133.40
AMLAMALIAS NDB22.8192°367
ZATZAKINTHOS NDB34.9234°326
ZAKZAKINTHOS VOR/DME35.3233°110.80
KEFKEFALLINIA NDB43.5268°318
KFNKEFALLINIA VOR/DME43.5268°115.50
PAKPREVEZA NDB55.6319°353
PRVPREVEZA TACAN55.8319°109.20
AKTPREVEZA VOR/DME56319°110
TRLTRIPOLIS VOR/DME62.4129°116.20

Departure and arrival routes

Transition altitude8000ft
SID end pointsdistanceoutbound heading
RW18R
 IXON3L39mi79°
 KOR3L73mi98°
 NEME4L61mi111°
 TRL3L62mi129°
 ENES3L56mi278°
 SOTE2L35mi312°
 GART3L54mi331°
RW36L
 IXON3M39mi79°
 KOR3M73mi98°
 NEME4M61mi111°
 TRL3M62mi129°
 ENES3M56mi278°
 SOTE2M35mi312°
 GART3M54mi331°

STAR starting pointsdistanceinbound heading
RW18R
 ENES3H56.198°
 ORTO2H74.5124°
 SOTE2H35.0132°
 GART2H54.4151°
 IXON3H39.3259°
 KOR3H72.6278°
 NEME4H60.8291°
 TRL3H62.4309°
RW36L
 ENES3G56.198°
 ORTO2G74.5124°
 SOTE2G35.0132°
 GART2G54.4151°
 IXON3G39.3259°
 KOR3G72.6278°
 NEME4G60.8291°
 TRL3G62.4309°

Holding patterns

STAR namehold attypeturnheading*altitudelegspeed limit
ENES3GARANDBright20 (200)°> 5000ft1.0min timedICAO rules
ENES3HARANDBright20 (200)°> 5000ft1.0min timedICAO rules
GART2GARANDBright20 (200)°> 5000ft1.0min timedICAO rules
GART2HARANDBright20 (200)°> 5000ft1.0min timedICAO rules
IXON3GARANDBright20 (200)°> 5000ft1.0min timedICAO rules
IXON3HARANDBright20 (200)°> 5000ft1.0min timedICAO rules
KOR3GARANDBright20 (200)°> 5000ft1.0min timedICAO rules
KOR3HARANDBright20 (200)°> 5000ft1.0min timedICAO rules
NEME4GARANDBright20 (200)°> 5000ft1.0min timedICAO rules
NEME4HARANDBright20 (200)°> 5000ft1.0min timedICAO rules
ORTO2GARANDBright20 (200)°> 5000ft1.0min timedICAO rules
ORTO2HARANDBright20 (200)°> 5000ft1.0min timedICAO rules
SOTE2GARANDBright20 (200)°> 5000ft1.0min timedICAO rules
SOTE2HARANDBright20 (200)°> 5000ft1.0min timedICAO rules
TRL3GARANDBright20 (200)°> 5000ft1.0min timedICAO rules
TRL3HARANDBright20 (200)°> 5000ft1.0min timedICAO rules
*) magnetic outbound (inbound) holding course
